Classic Toggle Jaw Turnbuckles

Made in USA
  • Classic Toggle Jaw Turnbuckles
  • How It Works
  • Jaw Mounting Hardware

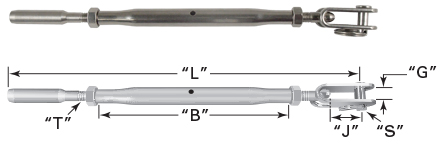

schematic

Classic Toggle Jaw Turnbuckles SWAGE  316SS
Cable Dia. Part No. "T"
THREAD
"B"
BODY
"L"
LENGTH
"J"
JAW
DEPTH
"S"
PIN
SIZE
"G"
JAW
WIDTH
OPEN CLOSED
1/8" 15A40202 1/4"- 28 4.50" 11.12" 7.50" .75" .25" .26"
3/16" 15A60202 1/4"- 28 4.00" 11.75" 8.12" .75" .25" .26"
1/4" 15A80202 5/16"- 24 5.12" 13.25" 9.37" 1.00" .31" .32"
1/4" 15A80204 3/8"- 24 5.56" 14.87" 10.37" .87" .37" .37"
Please click part number to order.



Swage to Swage Turnbuckle
How it works.
Utilizing “Clevis” style ends for cable attachment, this system allows for connection to eye bolts, tee-stock, angle iron, flat bars, loops, etc. The toggling feature allows for angled takeoff without the use of additional hardware. Toggle ends come standard with a clevis pin and ring pin, however, also available with screw and lock nut upon request. For matching Non-Tensioning Fitting, use Series 15.
