Smoothline Deck Toggle Turnbuckles

Made in USA
  • Smoothline Deck Toggle Turnbuckle
  • How It Works
  • Mounting Hardware



schematic
Smoothline Deck Toggle Turnbuckles SWAGE  316SS
Cable Dia. Part No. "B"
BODY
"D"
BODY DIA.
"L"
LENGTH
"K"
HOLE SPACING
"S"
SCREW SIZE
OPEN CLOSED
1/8" 15A40402SL 4.75" .500" 7.000" 5.750" 1.313" .250"
3/16" 15A60402SL 4.75" .500" 7.000" 5.750" 1.313" .250"
1/4" 15A80402SL 4.75" .625" 8.000" 6.750" 1.500" .313"
Please click part number to order.







How It Works

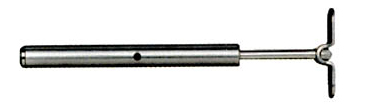

Deck toggles provide a face-mount solution while allowing for angled takeoff. The deck toggle fittings are attached utilizing two screws through the deck toggle base. The mounting surfaces include wood posts or blocking, either side of a common post by through-bolting, or drilling and tapping a metallic post. The articulation range of this deck toggle end fitting is 140 degrees.




Deck Toggle Mounting Hardware
Lag Bolt  18-8SS
PART NO. SIZE DIA. LENGTH
11HLB832 1/4" 1.000"
11HLB848 1/4" 1.500"
11HLB880 1/4" 2.500"
Please click part number to order.
Button Head Allen Screw 18-8SS
PART NO. THREAD LENGTH
11HBS8 1/4-28 .500"
Please click part number to order.
