Smoothline Toggle Jaw Turnbuckles

Made in USA
  • Smoothline Toggle Jaw Turnbuckle
  • How It Works
  • Jaw Mounting Hardware

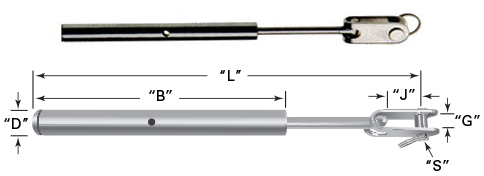

schematic
Smoothline Toggle Jaw Turnbuckles SWAGE  316SS
Cable Dia. Part No. "B"
 BODY		 "D"
BODY DIA.		 "L"
LENGTH		 "J"
 JAW DEPTH		 "S"
 PIN SIZE		 "G"
JAW WIDTH
OPEN CLOSED
1/8" 15A40202SL 4.75" .500" 7.750" 6.500" .750" .250" .250"
3/16" 15A60202SL 4.75" .500" 7.750" 6.500" .750" .250" .250"
1/4" 15A80202SL 4.75" .625" 8.750" 7.500" 1.000" .313" .313"
Please click part number to order.






How It Works
Utilizing “Clevis” style ends for cable attachment, this system allows for connection to eye bolts, tee-stock, angle iron, flat bars, loops, etc. The toggling feature allows for angled takeoff without the use of additional hardware. Toggle ends come standard with a clevis pin and ring pin; also available with screw and lock nut upon request.
