Product Detail


Manufacturer D & D Technologies

Barrel Hinge - CI3950


Price: $116.47
Quantity:

Product discounts do not apply to this item

Untitled Document
  • Overview
  • Schematic

PART NO. GAP
VARIANCE
(Inch/mm)		 FIXING
METHOD		 FINISH NO. OF
SEALED
BEARINGS		 MAX GATE
WEIGHT
(lbs/kg)		 MAX GATE
LOAD
(lbs/kg)		 YOKE
MATERIAL		 BODY
MATERIAL		 HEIGHT
(Inch/mm)		 WEIGHT
(lbs/kg)
63BAB3950 Fixed 1/2"
(13mm)		 Bolt-on
or Weld		 Zinc 4 1,500 lbs
(680kg)		 3,000 lbs
(1,360kg)		 Steel Steel 5.9"
(150mm)		 4.0 lbs
(1.8kg)
The BadAss Barrel Hinge from SHUT IT Gate Hardware is the strongest and most versatile gate hinge on the market. Ideal for nearly all heavy-duty gate installations. The BadAss Barrel Hinge is the game changer in the industry. The gate hinge can be installed where a full 180 degree gate opening is required and has the ability to reduce the gap between end post and gate to under ½" (13mm).

Key Features
• Four sealed maintenance free bearing (no greasing)
• For flat post installations
• Slotted for easy adjustment
• Bolt-on and weld-on installations
• Swings 180°
• Load rating per gate: 3,000 lbs (1,360kg)
• Maximum gate weight 1,500 lbs (680kg)

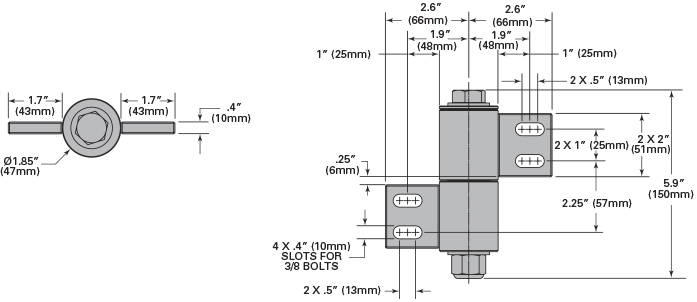

Schmatic
