Trellis Posts

  • Trellis Posts
  • How It Works
  • Optional Fittings

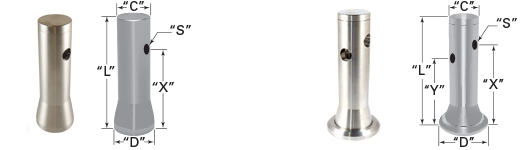

Trellis Posts 316SS
Cable Dia. Part No. "L"
LENGTH		 "C"
BODY DIA.		 "D"
BASE DIA.		 "X" "Y" Through Holes "S"
HOLE DIA.		 Mount Screw Hole Size
1/8" 10HTP08961 2.685" .745" .990" 1.990" N/A 1 .265" .388"
1/8" 10HTP08962 2.685" .745" .990" 1.990" 1.720" 2 .265" .388"
1/8" 10HTP081281 3.685" .745" .990" 2.990" N/A 1 .265" .388"
1/8" 10HTP081282 3.685" .745" .990" 2.990" 2.720" 2 .265" .388"
3/16" - 1/4" 10HTP121281* 3.820" .995" 1.745" 3.020" N/A 1 .388" .388"
3/16" - 1/4" 10HTP121282* 3.820" .995" 1.745" 3.020" 2.630" 2 .388" .388"
* Includes wide support base.
Please click part number to order.






Trellis System Hardware
Trellis system hardware made from 316-grade stainless steel is offered in 1/8” to 1/4” wire diameters. The system is designed to accommodate cables attaching perpendicular to each other to form a grid pattern. Cable sizes greater than 1/8” utilize the 10HTP08 series posts which have an additional support base for stability. The posts offer a through-mounting system for attachment to a surface.



Support Base Mounting Screw
Socket Head Cap Screw		 Wood Mounting Screw
Flat Head Phillips Screw
