Galvanized Screw Pin Anchor Shackles
- Screw Pin Anchor Shackles
- Installation Info
|

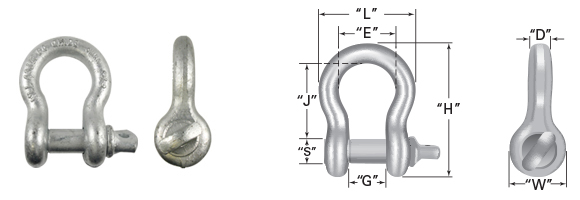

| Galvanized Screw Pin Anchor Shackles |
GALV. |
Nominal
Size
(in.)
|
Part No. |
WLL*
(lbs.) |
"D"
STOCK
SIZE |
"G"
OPENING |
"E"
EYE WIDTH |
"J"
EYE
DEPTH |
"L"
LENGTH |
"W"
WIDTH |
"H"
HEIGHT |
"S"
PIN
DIA. |
Tolerance
+/- |
| "J" |
"G" |
| 3/16" |
RSSPA06 |
660 |
.19" |
.38" |
.60" |
.88" |
.98" |
.56" |
1.47" |
.25" |
.06" |
.06" |
| 1/4" |
RSSPA08 |
1,000 |
.25" |
.47" |
.78" |
1.13" |
1.28" |
.61" |
1.84" |
.31" |
.06" |
.06" |
| 5/16" |
RSSPA10 |
1,500 |
.31" |
.53" |
.84" |
1.22" |
1.47" |
.75" |
2.09" |
.38" |
.06" |
.06" |
| 3/8" |
RSSPA12 |
2,000 |
.38" |
.66" |
1.03" |
1.44" |
1.78" |
.91" |
2.49" |
.44" |
.13" |
.06" |
| 7/16" |
RSSPA14 |
3,000 |
.44" |
.75" |
1.16" |
1.69" |
2.03" |
1.06" |
2.91" |
.50" |
.13" |
.06" |
| 1/2" |
RSSPA16 |
4,000 |
.50" |
.81" |
1.31" |
1.88" |
2.31" |
1.19" |
3.28" |
.63" |
.13" |
.06" |
| 5/8" |
RSSPA20 |
6,500 |
.63" |
1.06" |
1.69" |
2.38" |
2.94" |
1.50" |
4.19" |
.75" |
.13" |
.06" |
| 3/4" |
RSSPA24 |
9,500 |
.75" |
1.25" |
2.00" |
2.81" |
3.50" |
1.81" |
4.97" |
.88" |
.25" |
.06" |
| 7/8" |
RSSPA28 |
13,000 |
.88" |
1.44" |
2.28" |
3.31" |
4.03" |
2.09" |
5.83" |
1.00" |
.25" |
.06" |
| 1" |
RSSPA32 |
17,000 |
1.00" |
1.69" |
2.69" |
3.75" |
4.69" |
2.38" |
6.56" |
1.13" |
.25" |
.06" |
| 1-1/8" |
RSSPA36 |
19,000 |
1.16" |
1.81" |
2.91" |
4.25" |
5.16" |
2.69" |
7.47" |
1.25" |
.25" |
.06" |
| 1-1/4" |
RSSPA40 |
24,000 |
1.29" |
2.03" |
3.25" |
4.69" |
5.75" |
3.00" |
8.25" |
1.38" |
.25" |
.06" |
| 1-3/8" |
RSSPA44 |
27,000 |
1.42" |
2.25" |
3.63" |
5.25" |
6.38" |
3.31" |
9.16" |
1.50" |
.25" |
.13" |
| 1-1/2" |
RSSPA48 |
34,000 |
1.52" |
2.38" |
3.88" |
5.75" |
6.88" |
3.63" |
10.00" |
1.63" |
.25" |
.13" |
| 1-3/4" |
RSSPA56 |
50,000 |
1.84" |
2.88" |
5.00" |
7.00" |
8.86" |
4.19" |
12.34" |
2.00" |
.25" |
.13" |
| 2" |
RSSPA64 |
70,000 |
2.08" |
3.25" |
5.75" |
7.75" |
9.97" |
4.81" |
13.68" |
2.25" |
.25" |
.13" |
| 2-1/2" |
RSSPA80 |
110,000 |
2.71" |
4.13" |
7.25" |
10.50" |
12.87" |
5.69" |
17.84" |
2.75" |
.25" |
.25" |
| Please click on part number to order. |
| * NOTE: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit. |
|
|
|
