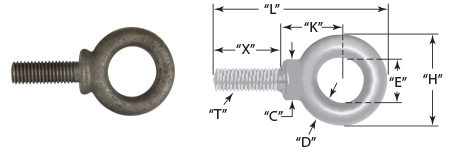

Steel Shoulder Type Machinery Eye Bolts
|
| Steel, Self Colored Shoulder Type Machinery Eye Bolts |
Shank Dia.
and Length
(in.) |
Part No. |
WLL
(lbs.)* |
"T" **
THREAD |
"X"
THREAD
LENGTH |
"K"
SHOULDER
TO C/L |
"E"
EYE
DIA. |
"L"
LENGTH |
"D"
MATERIAL
DIA. |
"C"
SHOULDER
WIDTH |
"H"
HEIGHT |
| 3/8" x 1-1/4" |
REBMS12 |
1,550 |
3/8"-16 |
1.27" |
1.05" |
1.00" |
3.07" |
.31" |
.69" |
1.62" |
| 1/2" x 1-1/2" |
REBMS16 |
2,600 |
1/2"-13 |
1.53" |
1.27" |
1.19" |
3.70" |
.38" |
.91" |
1.95" |
| 5/8" x 1-3/4" |
REBMS20 |
5,200 |
5/8"-11 |
1.79" |
1.53" |
1.38" |
4.45" |
.50" |
1.13" |
2.38" |
| * Ultimate Load is 5 times the Working Load Limit. Maximum Proof Load is 2 times the Working Load Limit. |
| ** All bolts threaded UNC |
|
|
|
