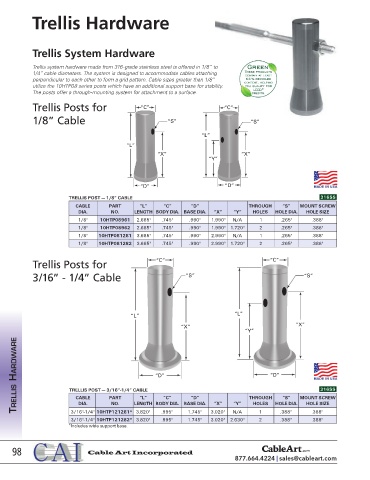

Trellis System Hardware

Trellis system hardware made from 316-grade stainless steel is offered in 1/8” to
1/4” cable diameters. The system is designed to accommodate cables attaching
perpendicular to each other to form a grid pattern. Cable sizes greater than 1/8”
utilize the 10HTP08 series posts which have an additional support base for stability.
The posts offer a through-mounting system for attachment to a surface.
Trellis Posts for “C” “C”

1/8” Cable “S” “S”

“L”
“L”
“X” “X”
“Y”

“D” “D”

TRELLIS POST — 1/8” CABLE 316SS
CABLE PART “L” “C” “D” THROUGH “S” MOUNT SCREW
DIA. NO. LENGTH BODY DIA. BASE DIA. “X” “Y” HOLES HOLE DIA. HOLE SIZE
1/8" 10HTP08961 2.685" .745" .990" 1.990" N/A 1 .265" .388"
1/8" 10HTP08962 2.685" .745" .990" 1.990" 1.720" 2 .265" .388"
1/8" 10HTP081281 3.685" .745" .990" 2.990" N/A 1 .265" .388"
1/8" 10HTP081282 3.685" .745" .990" 2.990" 1.720" 2 .265" .388"

Trellis Posts for “C” “C”
3/16” - 1/4” Cable “S” “S”

“L” “L”
“X” “X”
“Y”
TRELLIS HARDWARE TRELLIS POST — 3/16”-1/4” CABLE “D” “D” 316SS

“S”
“L”
“C”
CABLE
“D”
PART
“Y”
HOLE SIZE
HOLES
“X”
LENGTH BODY DIA.
NO.
DIA.
.388"
1
N/A
.388"
1.745"
3/16"-1/4"
2
.388"
.388"
10HTP121282* 3.820"
1.745"
.995"
3/16"-1/4" 10HTP121281* 3.820" .995" BASE DIA. 3.020" 2.630" THROUGH HOLE DIA. MOUNT SCREW
3.020"
*Includes wide support base.
