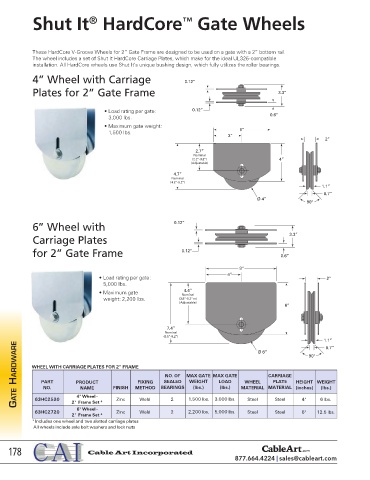

Shut It HardCore Gate Wheels
®
™

These HardCore V-Groove Wheels for 2” Gate Frame are designed to be used on a gate with a 2” bottom rail.
The wheel includes a set of Shut It HardCore Carriage Plates, which make for the ideal UL325-compatible
installation. All HardCore wheels use Shut It’s unique bushing design, which fully utilizes the roller bearings.

4” Wheel with Carriage 0.12”
Plates for 2” Gate Frame 3.3”

• Load rating per gate: 0.12”
3,000 Ibs. 0.6”
• Maximum gate weight:
1,500 Ibs. 6”
3”
2”
2.7”
Nominal
(2.2”-3.2”) 4”
(Adjustable)
4.7”
Nominal
(4.2”-5.2”)
1.1”
0.7”
Ø 4”
90°

6” Wheel with 0.12”

Carriage Plates 3.3”
for 2” Gate Frame 0.12” 0.6”

8”
4”
• Load rating per gate: 2”
5,000 Ibs.
4.4”
• Maximum gate Nominal
weight: 2,200 Ibs. (3.5”-5.2”m)
(Adjustable)
6”

7.4”
Nominal
(6.5”-8.2”)
1.1”
GATE HARDWARE WHEEL WITH CARRIAGE PLATES FOR 2” FRAME FIXING BEARINGS MAX GATE MAX GATE MATERIAL MATERIAL HEIGHT WEIGHT
0.7”
Ø 6”
90°
CARRIAGE
NO. OF
WHEEL
PLATE
LOAD
PART
WEIGHT
SEALED
PRODUCT
(lbs.)
(lbs.)
FINISH
METHOD
(lbs.)
(inches)
NO.
NAME
4" Wheel -
6 lbs.
63HC2520
6" Wheel -
Weld
63HC2720 2" Frame Set * Zinc Weld 2 2 1,500 lbs. 3,000 lbs. Steel Steel 4" 12.5 lbs.
2,200 lbs.
6"
Steel
Steel
Zinc
5,000 lbs.
2" Frame Set *
* Includes one wheel and two slotted carriage plates
All wheels include axle bolt washers and lock nuts
