Product Detail
Manufacturer
D & D Technologies
Extended Guide Assembly - CI2350
Price:
$44.28
Quantity:
Product discounts do not apply to this item
Untitled Document
Overview

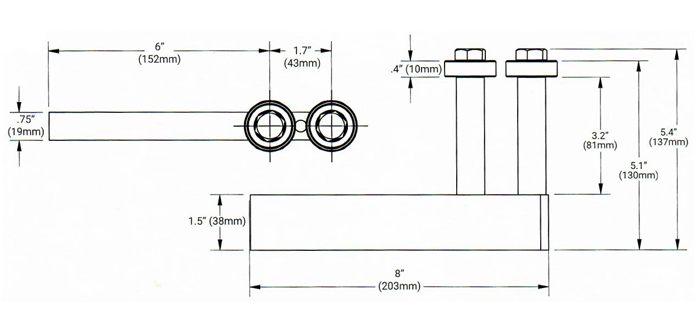

Schematic
PART NO.
FIXING
METHOD
FINISH
NO. OF
SEALED
BEARINGS
MAX GATE
WEIGHT
(lbs/kg)
MAX GATE
LOAD
(lbs/kg)
WHEEL
MATERIAL
CARRIAGE
PLATE
MATERIAL
HEIGHT
(Inch/mm)
WEIGHT
(lbs/kg)
63HC2350
Weld
Zinc
2
-
-
Steel
-
10"
(254mm)
4.5 lbs
(2kg)
The HardCORE Guide Assembly is a smartass design by SHUT IT that replaces the industry standard guide rollers. Simply weld a 2 x 2" (51 x 51 mm) angle iron to your gate and attached the Guide Assembly to the end post. This Extended version of the Guide Assembly is ideal for installations that have grade variations through the run distance of the gate.
Key Features
• Two sealed maintenance free bearings (no greasing)
• Super hard steel
• Zinc finish
